By, Amy S

• 14 Dec, 2025
• 6 Views
• 0 Comment

Scaling microservices efficiently can be challenging, but using the right design patterns can help you handle traffic surges, reduce failures, and control costs. Here’s a quick overview of 10 key scalability patterns that address these challenges:

1. Horizontal Scaling: Add more service instances to distribute load and increase fault tolerance.
2. Vertical Scaling: Upgrade the resources of a single instance for quick performance boosts.
3. Auto-Scaling: Dynamically adjust resources based on real-time metrics like CPU usage or request rates.
4. Database per Service: Assign each microservice its own database to reduce contention and improve independence.
5. Circuit Breaker: Prevent cascading failures by blocking calls to failing services temporarily.
6. Bulkhead: Isolate resources to ensure one service’s failure doesn’t disrupt others.
7. CQRS (Command Query Responsibility Segregation): Separate read and write operations for better performance and scalability.
8. API Gateway: Centralize routing, authentication, and caching to simplify client interactions.
9. Service Mesh: Manage inter-service communication with sidecar proxies for traffic, security, and observability.
10. Event-Driven Architecture (EDA): Use asynchronous communication via events for smoother workflows and independent scaling.

These patterns help build resilient, scalable systems that perform well under pressure while optimizing resources. For example, horizontal scaling and auto-scaling are great for handling traffic spikes, while the Circuit Breaker and Bulkhead patterns protect against cascading failures.

Each pattern has specific use cases, benefits, and challenges, so selecting the right mix depends on your system’s needs. For Canadian organizations, these strategies are especially useful for managing seasonal demand, ensuring compliance, and controlling cloud costs in CAD.

Three Patterns To Scale Your Microservices

1. Horizontal Scaling Pattern

Horizontal scaling, often referred to as "scaling out", involves adding multiple service instances behind a load balancer to distribute incoming requests. Unlike vertical scaling, which upgrades a single server’s resources, horizontal scaling deploys several identical copies of a service. For example, if an instance in a region like ca-central-1 experiences a failure, the remaining instances continue handling traffic seamlessly. This approach is especially beneficial in pay-as-you-go CAD cloud environments, as it helps manage costs while ensuring scalability for stateless services.

Scalability Impact

Horizontal scaling can significantly boost throughput, up to the point where shared bottlenecks like databases or network bandwidth come into play. It also enhances fault tolerance by isolating failures to individual instances, with load balancers automatically redirecting traffic away from problem nodes. This makes it ideal for handling sudden traffic surges, such as Boxing Day shopping frenzies or tax-season deadlines. When paired with auto-scaling, this pattern ensures microservices meet performance goals – like maintaining a p95 latency under 200 ms – even during demand spikes.

Use Case Suitability

This pattern is particularly effective for stateless microservices that are CPU- or I/O-intensive and can run in multiple identical instances without relying on local state. Examples include API backends, authentication gateways, and services handling read-heavy queries. It’s also a great fit for applications with fluctuating or seasonal traffic, such as e-commerce platforms preparing for holiday sales, public-sector portals with filing deadlines, or media streaming services during prime-time hours. Digital Fractal Technologies Inc applies this pattern to build scalable microservice-based mobile and web applications, enabling specific workflows or AI-driven components to scale dynamically with demand.

Implementation Complexity

Implementing horizontal scaling comes with its challenges. Services must be refactored to operate without maintaining local state, configurations need to be externalized, and operations must be idempotent to avoid inconsistent behaviour during retries or parallel requests. There are also hurdles in observability and operational management, such as consolidating logs and metrics across instances and managing rolling deployments. However, once the required patterns and tools – like CI/CD pipelines integrated with orchestration platforms – are set up, scaling becomes a straightforward and repeatable process.

Cost Efficiency

Horizontal scaling offers a cost-effective way to handle demand by deploying numerous smaller instances instead of a few large ones. This allows resources to scale directly with traffic, minimizing waste during off-peak times. Combined with auto-scaling and metered billing, organizations can reduce instance counts during low-traffic periods, cutting monthly operational costs. That said, this approach does come with trade-offs, such as higher baseline infrastructure costs and additional expenses for components like managed load balancers and service meshes. Nonetheless, the flexibility and efficiency often outweigh these drawbacks.

2. Vertical Scaling Pattern

Vertical scaling, or "scaling up", involves increasing the resources of a single instance rather than adding more instances, as in horizontal scaling. In this approach, you enhance the capacity of one node by adding more vCPUs, increasing RAM, upgrading to faster storage, or improving network capabilities. For example, you might move a microservice from a 2 vCPU/4 GB RAM setup to an 8 vCPU/32 GB RAM configuration within a Canadian cloud region. This method is often simpler than horizontal scaling since it avoids the complexities of load balancing.

Scalability Impact

Vertical scaling provides immediate performance improvements for services that are limited by CPU or memory. It reduces issues like garbage collection pressure, context switching, and I/O contention on a single node. However, every instance has a limit where adding more resources results in diminishing returns due to I/O constraints and lock contention. Additionally, relying heavily on a single node increases risk – if that node fails, a significant portion of your capacity is lost. To reduce this risk, deploying scaled-up instances across multiple availability zones is recommended. These considerations shape the scenarios where vertical scaling is most effective.

Use Case Suitability

Vertical scaling is particularly useful for stateful or session-heavy services that are difficult to distribute, such as legacy CRM or ERP systems that have been restructured into microservices. It also works well for compute-heavy tasks like AI scoring engines, optimization algorithms, or geospatial processing, often used in industries like energy or construction. These workloads benefit greatly from enhanced memory and CPU resources. In Canada, organizations in regulated sectors – such as the public sector, utilities, or healthcare – frequently scale core transactional services vertically to meet strict SLAs and compliance requirements. Digital Fractal Technologies Inc employs this pattern for custom applications and workflow automation in early modernization projects, particularly when transitioning from monolithic systems to microservices for public-sector and energy clients.

Implementation Complexity

While vertical scaling simplifies architecture by avoiding distributed systems challenges, it introduces its own set of operational considerations. Compared to horizontal scaling, vertical scaling typically involves fewer changes to application code and architecture. The process is often as simple as resizing instance types, updating node pools, or fine-tuning runtime settings. However, there are potential pitfalls, such as hitting the maximum instance size, under-provisioning related components, or creating a single point of failure. In Kubernetes environments, very large pods can become unschedulable if no nodes have enough capacity, leading to deployment delays.

Cost Efficiency

The cost-effectiveness of vertical scaling depends on the specific context. Larger instances may offer better price-to-performance ratios up to a point, but they also come with higher hourly costs. Additionally, unused capacity during off-peak times can lead to wasted expenses. For predictable workloads in Canada – such as government back-office systems or energy asset management – committing to larger reserved instances can be a smart financial decision. However, licensing costs based on cores or sockets may significantly increase expenses. Without precise auto-scaling, vertically scaled systems can end up over-provisioned, especially during seasonal demand fluctuations. As a result, many organizations view vertical scaling as a transitional strategy, using it in the short to medium term while gradually adopting horizontal scaling and auto-scaling to better align capacity with demand and local cloud pricing.

3. Auto-Scaling Pattern

Auto-scaling automatically adjusts the number of microservice instances based on metrics like CPU usage, memory consumption, or request rates. Tools such as Kubernetes’ Horizontal Pod Autoscalers (HPA) monitor these metrics and dynamically modify the number of replicas, while cloud providers like AWS, Azure, and GCP use auto-scaling groups to manage virtual machines or containers as demand fluctuates. This approach is particularly valuable for microservices, as traffic often varies unpredictably across services. Scaling each service independently ensures better capacity management and resilience. This dynamic adjustment leads to better performance and cost control, as explained further below.

Scalability Impact

Auto-scaling introduces flexibility by allowing services to scale out during high demand and scale in when activity slows down. This dynamic response reduces the risk of service degradation during sudden traffic spikes. In a microservices setup, where each service operates independently, auto-scaling enhances overall system performance and optimises resource usage – especially for high-traffic services and user-facing APIs. According to a 2023 CNCF survey, 96% of organisations are either using or exploring Kubernetes, with HPA being the primary tool for container auto-scaling.

Use Case Suitability

Auto-scaling is particularly effective for workloads with fluctuating or bursty traffic. Examples include e-commerce platforms handling seasonal shopping surges, government websites managing deadline-driven spikes, and media platforms experiencing event-based traffic peaks. It’s also beneficial for SaaS applications with daily usage patterns and mobile apps that see sudden activity increases following marketing pushes. For workloads with consistent or predictable traffic, a smaller, more static deployment with minimal auto-scaling might be more cost-efficient. In regulated industries like healthcare, utilities, or government, combining scheduled scaling for predictable traffic with metric-based scaling for unexpected surges ensures compliance with service agreements while keeping costs in CAD under control. Digital Fractal Technologies Inc employs this pattern in cloud-native and AI-driven applications, helping clients handle seasonal or event-driven traffic spikes efficiently.

Implementation Complexity

Setting up auto-scaling is moderately complex. While most cloud and container platforms provide built-in tools, fine-tuning and maintaining these systems requires ongoing attention. The process typically involves defining resource limits for each microservice container, configuring an HPA with target metrics (e.g., maintaining average CPU usage at 60%), setting minimum and maximum replica counts, and integrating metrics pipelines like Kubernetes Metrics Server or Prometheus. Testing scaling policies under load is critical to ensure smooth scale-outs and avoid instability during scale-ins. Common challenges include choosing the wrong metrics or thresholds, which can lead to over-scaling or under-scaling, and overly aggressive scale-in policies that destabilise services. To ensure reliable performance, continuous monitoring, alerting, and iterative adjustments are necessary. Despite these challenges, the potential cost savings make auto-scaling highly worthwhile.

Cost Efficiency

In pay-as-you-go cloud models, auto-scaling significantly improves cost efficiency by aligning resource usage with demand. When combined with reserved or savings plans, it can cut cloud expenses by up to 70% while maintaining performance during peak periods. To avoid overspending, organisations should set conservative maximum instance limits for each service, maintain a right-sized base capacity with a minimal always-on footprint, and use on-demand instances for traffic bursts. For Canadian businesses, this elasticity helps balance monthly cloud costs in CAD while meeting service-level objectives for latency and availability. Case studies often highlight a 30–50% improvement in response times during peak loads, alongside notable reductions in cloud spending after implementing auto-scaling. This pattern works well alongside horizontal and vertical scaling, contributing to a robust and efficient microservices architecture.

4. Database per Service Pattern

To complement the scaling of compute and storage resources, the Database per Service Pattern isolates data management, enhancing the performance of individual services. This approach assigns each microservice its own database or schema, eliminating the contention that arises from shared databases. Each service has complete ownership of its data, and other services can only interact with that data through the owning service’s API – direct database access is off-limits. Amazon is a prime example of this pattern in action, with services like catalog, accounts, and orders each operating their own databases to maximize independence and scalability.

Scalability Impact

This pattern significantly improves scalability by allowing each service’s database to grow independently based on its workload. For instance, a high-traffic service like product search can scale horizontally using a NoSQL store, while a billing service can rely on a relational database optimized for ACID compliance. This concept, known as polyglot persistence, enables each service to select the database best suited to its needs, avoiding the bottlenecks common in monolithic systems. A 2021 O’Reilly report found that more than 75% of organisations using microservices also adopt polyglot persistence, highlighting the popularity of this approach. For Canadian businesses dealing with seasonal demand or regional traffic surges, this modular strategy enhances performance and optimizes resource usage without overburdening a single shared database.

Use Case Suitability

The Database per Service Pattern is ideal for complex, domain-heavy systems where services have distinct performance requirements and service-level agreements. Companies like Amazon and eBay leverage this method to efficiently manage varying workloads across services such as billing, user management, analytics, and inventory, ensuring no single service disrupts another. This pattern also suits public-sector platforms, energy management systems, and construction workflows. For example, Digital Fractal Technologies Inc applies this approach to create bounded contexts and assign per-service databases, enabling clients to maintain independent release cycles and team autonomy. However, for small systems, the overhead of managing multiple databases – like backups, monitoring, and security – can outweigh the benefits. In such cases, starting with per-service schemas on a shared cluster and transitioning to separate instances as traffic grows is often more practical.

Implementation Complexity

Adopting this pattern comes with moderate to high complexity, particularly in maintaining data consistency across services. Without traditional cross-service transactions, techniques like sagas or event sourcing are needed to ensure consistency. Properly designing service boundaries is critical to prevent tight coupling caused by shared data dependencies. Once implemented, this pattern empowers teams to work autonomously and deploy faster, as they can modify their service’s schema without needing to coordinate with others. To address challenges, strategies like CQRS (Command Query Responsibility Segregation) can be used to create read models for cross-service queries, while standardized tools for provisioning, backups, and monitoring help keep operations manageable.

Cost Efficiency

This pattern supports cost efficiency by enabling precise resource allocation. Services under heavy load can scale their databases independently, while low-traffic services can use more economical options. In cloud environments with pay-as-you-go pricing, this approach minimizes waste compared to over-provisioning a shared monolithic database. Early-stage systems can begin with shared clusters using per-service schemas and later transition to separate instances as demand increases. Canadian organisations should also factor in data residency requirements when provisioning per-service databases in cloud regions. Additionally, aligning database costs with departmental budgets or chargebacks can make the financial impact of scaling each service more transparent.

5. Circuit Breaker Pattern

The Circuit Breaker Pattern acts like a safety net for microservices, halting requests to a failing service before the problem spreads throughout the system. Imagine a downstream service, like a payment gateway, encountering repeated failures. The circuit breaker keeps an eye on these errors and "trips" once a certain threshold is crossed – say, five consecutive failures or a 50% error rate within 10 seconds. When tripped, it shifts into an open state, instantly failing requests without even trying to contact the faulty service. This pause allows the troubled service some breathing room to recover. After a set cooldown period (usually 30 seconds to a minute), the breaker moves into a half-open state to test if the service is back on track. If it is, the circuit closes, and normal operations resume. If not, it reopens and continues blocking requests.

Scalability Impact

By isolating a failing service, this pattern helps the system maintain stability and avoid cascading failures that could bring everything down. For instance, Netflix famously adopted this approach to handle thousands of service calls per second while keeping their availability at an impressive 99.99%, even during peak traffic. Research shows that using this pattern can reduce the impact of cascading failures by up to 90% and boost resource efficiency by two to three times during partial outages. For Canadian organisations, this is particularly relevant. Think of public-sector platforms during tax season or energy systems during extreme weather – this pattern ensures critical services stay functional even when parts of the system falter.

Use Case Suitability

The Circuit Breaker Pattern shines in distributed systems that depend on unpredictable downstream services. Take e-commerce platforms, for example. They often rely on external systems like payment processors, inventory databases, or shipping APIs. Even if one of these services goes down, the circuit breaker ensures the core shopping experience stays responsive. It’s also a lifesaver for high-latency inter-service calls where waiting for timeouts could drain resources. Companies like Digital Fractal Technologies Inc use this pattern in custom CRM systems and workflow automation tools to ensure that business-critical functions keep running smoothly, even when secondary services hit a snag. Pairing circuit breakers with fallback strategies – like serving cached data when live services are unavailable – can make systems even more resilient.

Implementation Complexity

Setting up the Circuit Breaker Pattern isn’t overly complicated, especially with the help of established libraries. Tools like Resilience4j for Java, Polly for .NET, or service meshes like Istio make the process much easier. The real challenge lies in fine-tuning the configuration. If the thresholds are too strict, the breaker might trip unnecessarily. If they’re too lenient, failures could spiral out of control. Monitoring state transitions and recovery times is crucial to getting it right. Experts suggest combining circuit breakers with other strategies like timeouts, retries, and fallbacks, and starting with conservative thresholds – such as 5 to 10 consecutive failures – to minimise false positives.

Cost Efficiency

Circuit breakers also help keep cloud costs in check. By blocking repeated attempts to contact a failing service, they reduce unnecessary use of compute, memory, and network resources. In pay-as-you-go cloud environments, this means only healthy services are scaled, which keeps costs under control during outages. During partial failures, auto-scaling can focus on supporting the parts of the system that are still working, ensuring that essential services remain operational while avoiding wasteful spending. Next, we’ll explore another pattern that further boosts microservices scalability.

6. Bulkhead Pattern

The Bulkhead Pattern takes its name from the watertight compartments in a ship, designed to contain damage and prevent it from spreading. In a microservices architecture, this concept is applied by dividing resources – like thread pools, database connections, or container groups – to ensure that a failure in one component doesn’t ripple through the entire system. For example, in a mobile banking platform, separating resources for payment processing, account queries, and notifications ensures that a sudden spike in notifications won’t disrupt critical payment transactions.

Scalability Impact

This pattern is especially effective at addressing the "noisy neighbour" problem often seen in shared-resource environments. By setting strict limits on resource usage for each partition, teams can scale individual components without affecting others. On platforms like Kubernetes, you can assign dedicated node pools to critical APIs while allowing less essential features to share resources. This ensures that auto-scaling happens where it’s most needed. For Canadian SaaS providers, particularly those serving public-sector or energy clients, bulkheads are invaluable in preventing a traffic surge from one tenant from draining resources needed by others. This isolation is crucial for maintaining reliability in mission-critical applications.

Use Case Suitability

The Bulkhead Pattern is a natural fit for services that must stay operational even if other parts of the system face issues. Examples include payment processing, identity verification, and emergency reporting systems. It’s also essential for multi-tenant platforms where fair resource allocation is a priority. If your application relies on slow or unreliable third-party APIs, isolating these calls with dedicated connection pools can prevent them from monopolizing shared resources. For instance, Digital Fractal Technologies Inc uses this pattern in custom CRM systems and workflow automation, ensuring that primary functions remain responsive even when secondary integrations encounter problems. That said, for smaller systems or early-stage products with low traffic, the complexity and operational overhead might outweigh the benefits.

Implementation Complexity

Implementing bulkheads requires a deep understanding of traffic patterns and careful planning to define effective partitions and resource limits. At the service level, this might involve assigning separate thread pools or worker queues to each microservice or endpoint. On the infrastructure side, you can isolate critical services with dedicated container sets or node pools in Kubernetes. For data and integration layers, setting up separate database connection pools and rate limits for each service or client is often necessary. To do this effectively, you’ll need expertise in concurrency, container orchestration, and observability tools to monitor and fine-tune these boundaries. When paired with other resilience techniques like circuit breakers and auto-scaling, bulkheads create a multi-layered approach that strengthens overall system stability.

Cost Efficiency

While implementing bulkheads may initially come with higher costs – due to the need for dedicated capacity and isolated resource pools – it can lead to better cost management in the long run. By preventing cascading failures and allowing precise scaling, you reduce the need to over-provision resources across the entire system. For example, during a seasonal surge, you can scale up an events-processing bulkhead without affecting back-office services. In pay-as-you-go cloud environments, this approach might slightly increase baseline spending in Canadian dollars (CAD), but the savings from avoiding downtime and SLA penalties can significantly lower the total cost of ownership over time. By capping resource use, you also minimise the need for system-wide over-provisioning.

sbb-itb-fd1fcab

7. CQRS Pattern

The CQRS (Command Query Responsibility Segregation) pattern divides write operations (commands) and read operations (queries) into separate models. Instead of relying on a single model for both, it uses distinct models tailored to each function. Commands handle updates to the system state via a write model, while queries retrieve data from read models optimized for performance. This approach shines when read and write demands vary significantly. For instance, in an e-commerce platform, product searches might vastly outnumber purchases, or in a government portal, thousands of citizens could check their application statuses while only a handful submit new forms. This separation not only enhances efficiency but also improves scalability by allowing the read and write sides to be optimized independently.

Scalability Impact

The CQRS pattern is particularly effective when read operations far exceed writes – ratios of 10:1 or more are common. By separating these functions, you can deploy multiple read-optimized instances or database replicas to handle query traffic without affecting the write infrastructure. For example, transactional writes might use a relational database to ensure ACID compliance, while reads could be served from Elasticsearch or a NoSQL database designed for speed and flexibility. This prevents bottlenecks that arise when a single database is tasked with managing both complex analytical queries and critical transactional updates. In Canadian cloud regions like Canada Central or Canada East, read replicas can be distributed across availability zones, ensuring low-latency access for users across provinces. This setup allows each side to scale independently based on actual demand.

Use Case Suitability

CQRS is ideal for scenarios like analytics dashboards, social media feeds, or real-time monitoring tools. For example, energy monitoring dashboards for Canadian utilities or construction management tools might require real-time status updates for stakeholders, while updates occur less frequently. With CQRS, you can create specialized read models for various needs – one for mobile apps, another for detailed reporting, and a third for search – all derived from the same write model. Companies like Digital Fractal Technologies Inc use this pattern in custom CRM systems and business management tools where reporting requirements differ significantly from transactional workflows. However, for simpler CRUD services or when managing many microservices with a small team, CQRS might be overkill. The added complexity of maintaining separate models and dealing with eventual consistency may not justify the effort.

Implementation Complexity

Implementing CQRS can range from moderately challenging to highly complex. Synchronizing data between the command and query models often requires event streams or messaging queues like Kafka. This introduces eventual consistency, meaning read models won’t immediately reflect every write. Managing synchronization lag and ensuring robust error handling is crucial. Tools like Axon Framework or EventStore can simplify the process, but challenges remain, including maintaining dual models and ensuring data integrity. A good starting point is to separate read and write models within the same service before progressing to full physical separation with distinct data stores. Use logging, tracing, and metrics to monitor lag between command processing and read updates, as this directly impacts user experience.

Cost Efficiency

CQRS allows for more efficient resource allocation. Since read operations can often be handled by less expensive, horizontally scalable systems – like caches, NoSQL databases, or search clusters – you can reduce the cost per query compared to scaling a single transactional database vertically. For example, during peak Canadian business hours or seasonal spikes like tax filing periods, energy forecasting, or holiday shopping, you can scale the read side without increasing the load on the write infrastructure. While maintaining separate systems may slightly increase baseline costs, the ability to avoid performance bottlenecks and optimize resources independently often results in lower overall costs in pay-per-use CAD environments. Over time, this targeted approach can reduce the total cost of ownership.

8. API Gateway Pattern

The API Gateway pattern simplifies service access by creating a single entry point between clients and backend microservices. Instead of connecting directly to multiple services, clients interact with a central gateway that handles routing, authentication, and request aggregation. This setup takes care of common tasks like rate limiting, caching, and protocol translation, freeing up your backend services to focus on their core functions. For Canadian businesses aiming to maintain low latency, deploying the gateway across multiple regions with global load balancing is a practical solution.

Scalability Impact

An API gateway can enhance throughput by managing tasks like connection pooling, compression, and caching. It also reduces perceived latency by combining multiple backend calls into a single response – for example, fetching product details, inventory, and pricing in one go. To prevent the gateway from becoming a bottleneck, it should be deployed as a stateless, horizontally scalable tier using tools like autoscaling groups or Kubernetes Horizontal Pod Autoscaler. Health checks and scaling policies based on metrics like CPU usage, memory, or request rates ensure the gateway scales before hitting capacity. Deploying it across multiple availability zones adds an extra layer of reliability. Many Canadian teams also use managed load balancers and Content Delivery Networks to handle traffic surges, especially during events concentrated in specific time zones, such as 09:00 Eastern launches. This approach aligns well with earlier patterns by reducing service-to-service complexities.

Use Case Suitability

This pattern is ideal when different clients need customised payloads or API versions. The gateway can provide tailored façades for clients while hiding internal service updates. This is particularly useful in regulated Canadian industries like healthcare, public services, and energy, where compliance and governance are critical. It’s also effective for exposing APIs to external partners under service-level agreements, as the gateway centralises monitoring and rate limiting, reducing integration risks. However, if you’re managing just a few services with uniform client needs, a gateway might add unnecessary latency and complexity. For ultra-low-latency internal systems, direct service-to-service communication using a lightweight service mesh could be a better choice to avoid additional hops.

Implementation Complexity

You can choose between managed cloud gateways, open-source solutions, or custom-built gateways. Managed gateways are easier to operate and often include features like billing, analytics, security policies, and developer portals. These are attractive for Canadian organisations that need to comply with data residency laws by hosting in Canadian regions, though they can be less flexible and come with higher recurring costs. Open-source gateways offer more flexibility and community support but require expertise in Kubernetes, observability, and security hardening. Custom gateways provide maximum control over routing logic but demand the most development and maintenance effort. Companies like Digital Fractal Technologies Inc help Canadian businesses assess these options, considering their infrastructure, in-house expertise, and regulatory needs, to design a gateway strategy that meets their scalability and governance goals.

Cost Efficiency

API gateways can help cut costs by consolidating shared features into one scalable layer, reducing the need for duplicate functionality across services. Centralised caching at the gateway significantly reduces downstream traffic and database load, enabling the use of smaller, more cost-effective service instances and storage tiers. This translates to lower cloud bills in CAD for Canadian deployments. To optimise costs, you can tweak rate limits, adjust cache time-to-live settings, right-size instances, and use autoscaling with a conservative baseline to align resources with actual demand. Leveraging pay-as-you-go pricing models and scheduled scaling – such as increasing capacity during Canadian business hours or seasonal peaks like Boxing Day – allows resource allocation to closely match demand.

9. Service Mesh Pattern

The Service Mesh pattern adds a dedicated layer to manage communication between services without requiring changes to the application code. By deploying sidecar proxies – such as Envoy or Linkerd – next to each service instance, it takes care of tasks like traffic routing, load balancing, security, and observability. This setup enforces mutual TLS (mTLS) automatically and generates detailed metrics, which is particularly helpful for Canadian organisations in regulated industries where strict security compliance is essential. By simplifying networking complexities, service meshes improve inter-service communication and enhance scalability, complementing mechanisms like auto-scaling and circuit breakers.

Scalability Impact

Service meshes improve scalability by offering precise traffic management, distributing loads intelligently, and handling automatic retries to prevent cascading failures. They can cut latency by up to 50% and boost resource efficiency by 30–40% through optimised routing and seamless integration with auto-scaling. A real-world example is Netflix, which uses mesh-like proxies to handle billions of requests daily across thousands of microservices, achieving better fault isolation. In Kubernetes environments, service meshes support horizontal scaling by dynamically adjusting traffic as new instances are added. They can also integrate with the Horizontal Pod Autoscaler to trigger scaling based on metrics like request success rates or latency.

Use Case Suitability

This pattern is a great fit for environments with complex inter-service communication, such as e-commerce platforms or distributed systems that manage workloads across multiple time zones. It’s particularly useful when reliable traffic routing, encryption, and monitoring are needed without modifying existing application code. This makes it ideal for polyglot architectures. For example, Canadian public sector and energy applications benefit from features like automatic mTLS and consistent policy enforcement. Smaller teams or those in the prototyping phase can start with lightweight solutions like Linkerd to ease the learning curve.

Implementation Complexity

Deploying a service mesh involves setting up a control plane (e.g., Istio’s Istiod) and injecting sidecar proxies with commands like istioctl install and namespace labelling. The learning curve can be steep, especially for teams new to the concept, as operators need to configure custom resource definitions for routing, security, and monitoring. For simpler setups, Linkerd offers an easier, zero-configuration installation with minimal overhead. On the other hand, Istio provides advanced features like canary deployments and traffic splitting, which are useful for gradual rollouts. While sidecar proxies may introduce slight latency (usually less than 1 millisecond per request), they significantly improve system resilience and security. Digital Fractal Technologies Inc helps Canadian businesses evaluate options based on their Kubernetes experience, team expertise, and scalability requirements to implement a solution that balances functionality with operational needs.

Cost Efficiency

Service meshes contribute to cost savings by optimising resource usage through integration with auto-scaling and precise load balancing, reducing the risk of over-provisioning. Granular scaling can cut cloud expenses by 20–30% by targeting only the services experiencing high demand. Centralised observability tools like Prometheus and Grafana help identify inefficiencies, guiding better instance sizing and further reducing costs in Canadian cloud regions like AWS Canada Central. Resilience features such as timeouts and retries also minimise downtime, avoiding costly emergency scaling. However, the initial setup does require some additional resources for sidecar proxies and control plane components, making it crucial to monitor and fine-tune resource allocation to maintain cost-effective operations.

10. Event-Driven Architecture Pattern

The Event-Driven Architecture (EDA) pattern enables services to communicate asynchronously. Instead of relying on direct, synchronous calls, services publish events – like OrderCreated or PaymentProcessed – to a message broker such as Kafka, RabbitMQ, or AWS SNS/SQS. Other services subscribe to these events and react when they occur. This setup decouples producers from consumers, meaning they don’t need to operate simultaneously or even use the same technology. For Canadian organisations that experience unpredictable traffic spikes, this pattern helps smooth out sudden surges by creating manageable event backlogs, avoiding the bottlenecks that synchronous systems often face. It also enhances system resilience by distributing workloads more effectively.

Scalability Impact

EDA significantly boosts scalability by letting producers and consumers scale independently. Producers can quickly process incoming requests by passing tasks to background consumers, which can scale dynamically based on queue depth or event throughput. This separation ensures that high-traffic areas – like analytics or notifications – can expand without affecting essential transactional services. Message queues also act as buffers, handling bursts of activity while maintaining smooth operations. To make the most of this, teams should monitor metrics like consumer lag and event throughput to ensure auto-scaling policies kick in when needed.

Use Case Suitability

EDA works best for scenarios that involve high volumes, asynchronous processing, and workflows where eventual consistency is acceptable. Some common applications include:

• E-commerce order processing: Events like InventoryReserved or ShipmentDispatched trigger subsequent actions in the workflow.
• Real-time analytics: For example, data from IoT sensors in energy or utilities sectors.
• Public sector case management: Status updates generate events that drive further processes.
• Notification systems: Managing SMS or email alerts efficiently.

Digital Fractal Technologies Inc employs EDA alongside other architecture patterns to support scalability and operational continuity for a range of Canadian industries, including public sector, energy, and construction. Their approach often starts with smaller workflows – such as sending notifications or updating dashboards – to demonstrate EDA’s value before transitioning core workflows. This gradual adoption helps organisations handle large, unpredictable workloads like field reports or safety inspections without overhauling their entire system at once.

Implementation Complexity

Shifting to an EDA model requires careful planning and execution. Key components include setting up an event broker, defining event producers and consumers, and managing event schemas with formats like Avro or JSON. Teams also need to ensure observability by using distributed tracing and correlation IDs. Compared to REST-based microservices, EDA introduces more complexity: it requires designing for idempotency, managing out-of-order events, handling poison messages, and ensuring data consistency through techniques like saga orchestration. Success in this area depends on expertise in event modelling, domain-driven design, and robust DevOps practices, including broker capacity planning and fine-tuning consumer groups. Many organisations ease into EDA by running an event broker alongside their existing REST systems, gradually migrating services to event subscriptions as they refine monitoring and build confidence.

Cost Efficiency

EDA aligns well with cost-conscious strategies by enabling precise resource allocation. While it does introduce expenses for message brokers, event log storage, network egress, and scaling consumer instances, these costs can be managed effectively. Organisations can optimise spending by right-sizing broker clusters based on metrics like topic throughput and lag, using auto-scaling for consumer services tied to queue depth, and implementing tiered storage or shorter retention periods for events that don’t require long-term replay. Digital Fractal Technologies Inc supports clients by conducting architecture reviews and providing cost optimisation strategies, helping them balance EDA’s scalability and resilience benefits with operational and development expenses.

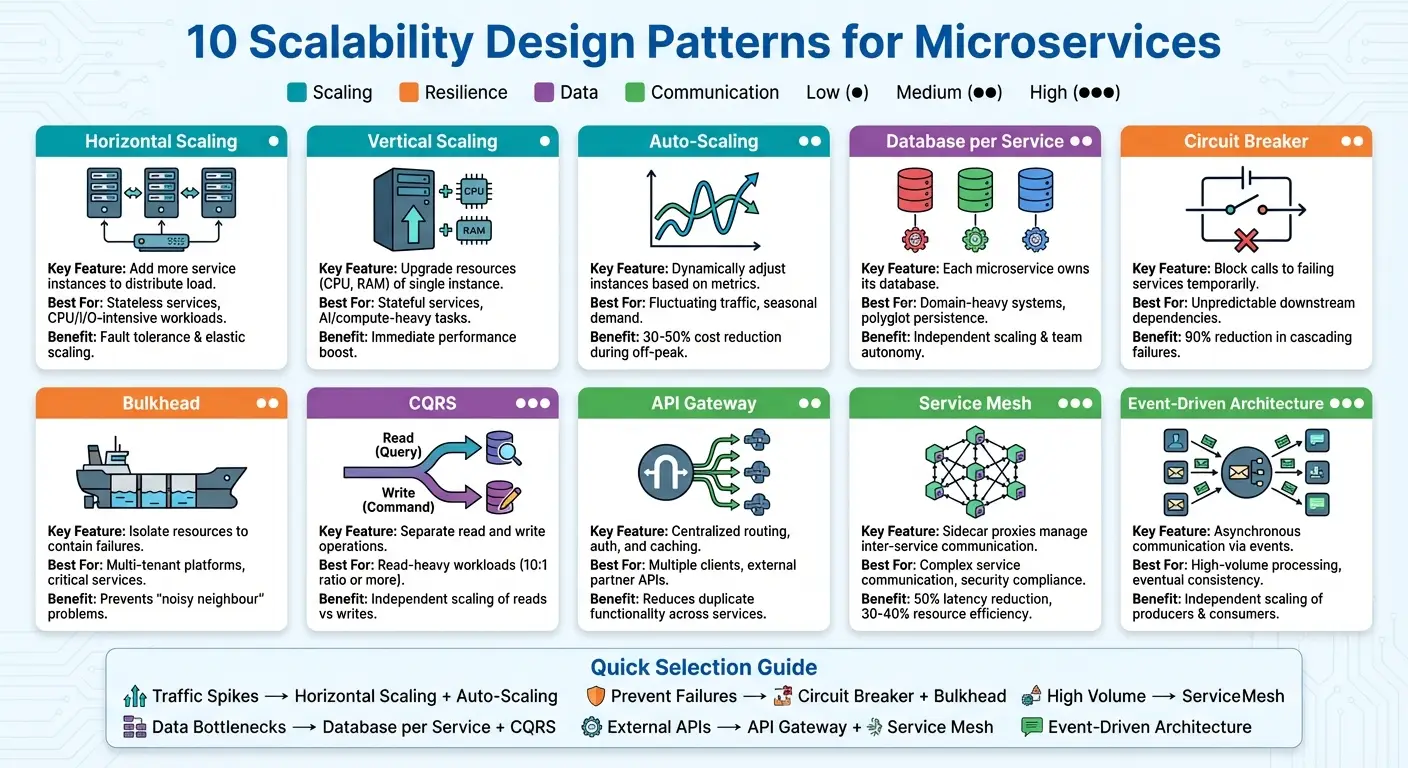

Pattern Comparison Table

When it comes to scaling microservices effectively, choosing the right design patterns is critical. Below is a comparison of key scalability patterns, highlighting their differences and trade-offs to help you make informed design decisions.

Horizontal vs. Vertical Scaling

Circuit Breaker vs. Bulkhead

These comparisons expand on the previously discussed patterns, offering a roadmap for Canadian teams to build more resilient systems. Combining these approaches often yields the best results: horizontal scaling with auto-scaling handles traffic surges, while Circuit Breaker and Bulkhead patterns protect against cascading failures.

For example, Canadian organisations managing public portals, energy monitoring systems, or construction management platforms can leverage these strategies to ensure high availability and performance. Companies like Digital Fractal Technologies Inc assist with architecture reviews and capacity planning, helping teams balance scalability, resilience, and operational costs across various industries, including public sector, energy, and construction.

Conclusion

The patterns we’ve covered offer practical ways to tackle common microservices challenges. Choosing the right scalability patterns can address specific issues your microservices might face. For instance, horizontal scaling and auto-scaling help manage traffic spikes while keeping cloud costs in CAD under control. Circuit breakers and bulkheads are great for preventing cascading failures, and database-per-service or CQRS patterns can eliminate data bottlenecks that hinder independent scaling. When used together, these patterns can create systems that stay reliable under pressure, recover smoothly from failures, and make efficient use of resources in Canada.

Start with the basics and evolve gradually. Focus on identifying your highest-traffic flows or bottlenecks, then test one or two patterns – such as an API gateway paired with horizontal scaling and simple circuit breakers – on a less critical service. Companies like Netflix and Amazon show that combining multiple patterns can achieve global scalability and high availability. However, they didn’t reach that level of complexity overnight; they built it step by step.

For Canadian organisations in sectors like public services, energy, or construction, adopting these patterns often requires balancing strict regulations, tight budgets, and operational challenges. These constraints align closely with the problems scalability patterns aim to solve. If your team lacks microservices expertise or is transitioning from a monolithic system, partnering with specialists like Digital Fractal Technologies Inc can be invaluable. They bring expertise in custom software development, AI consulting, and workflow automation, helping to implement the right mix of auto-scaling, database-per-service, event-driven workflows, and resilience patterns tailored to your unique needs.

Remember, scalability patterns are tools, not end goals. Treat each pattern as an engineering experiment. Define SLIs and SLOs – like p95 latency or error rates – and use them to measure improvements. Keep detailed documentation and runbooks that explain why each pattern was chosen, how it’s configured, and how to troubleshoot it. This ensures your architecture remains clear and manageable as it evolves.

FAQs

What’s the best way to choose between horizontal and vertical scaling for microservices?

When it comes to scaling your system, the choice between horizontal scaling and vertical scaling depends on what your workload demands and how your system operates.

• Horizontal scaling is ideal if you’re dealing with unpredictable or rapidly increasing demand. This method adds more instances to your infrastructure, balancing the load across multiple servers. It also boosts fault tolerance and ensures your system stays available even under pressure.
• Vertical scaling, on the other hand, suits situations where workload growth is predictable and can be handled by a single server. This involves upgrading the resources – like adding more CPU or memory – to an existing server, making it a simpler solution to implement.

Key factors to weigh include cost, complexity, and latency. Horizontal scaling often supports long-term growth more effectively, while vertical scaling is a practical choice for short-term or less complex upgrades.

What are the main challenges of using the Circuit Breaker pattern in microservices?

Implementing the Circuit Breaker pattern in microservices comes with its fair share of challenges. One major hurdle is dealing with false positives – when the circuit trips even though the system is functioning normally. This can unnecessarily disrupt operations and create more problems than it solves.

Then there’s the issue of latency. Addressing delays while ensuring fallback mechanisms work seamlessly demands thoughtful planning. Without this, users might experience interruptions, leading to a poor experience.

Striking the right balance between fault tolerance and system availability is another tricky aspect. If the settings are too aggressive, you might reduce downtime, but at the risk of blocking legitimate requests. To avoid this, proper monitoring and fine-tuning are critical to keep the system running smoothly without sacrificing performance.

How does an API Gateway enhance the scalability and performance of a microservices architecture?

An API Gateway serves as a central hub, efficiently managing requests between clients and microservices to boost scalability and performance. It streamlines operations by routing requests with precision, reducing latency, and handling load balancing to distribute traffic evenly.

On top of that, it enhances security by managing authentication and authorizations. Features like caching and rate limiting further optimize resource usage and help prevent system overloads. By simplifying communication and ensuring smooth operations, an API Gateway is a key component in creating a strong and scalable microservices architecture.
